| 加工定制：是 | 品牌：友联 | 用途：生产线 |
| 适用对象：护肤品类、 化妆品类、 鲜奶、 酱类 | 包装类型：瓶 | 售后服务：保修一年（不含易损件） |
| 型号：CHX-YG | 产品别名：液体灌装加塞封口机 | 类型：灌装加塞封口机 |
| 规格：按客户要求 |

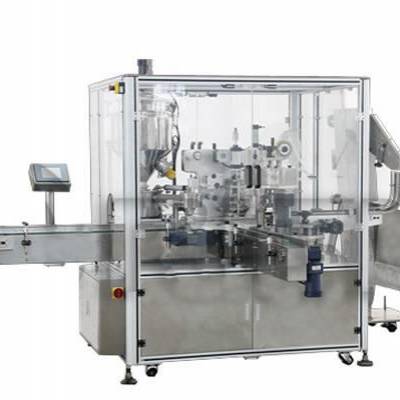

CHX-YG液体灌装加塞封口机
产品特点： 该机适用于小剂量液体、膏体充填、加塞、锁盖。比如：西林瓶、滴鼻、滴眼药水瓶。 AISI 316L不锈钢旋转柱塞泵或高精度陶瓷旋转柱塞泵由伺服电机驱动，只需在触摸屏上设定装量，自动完成精度修正，不用任何工具；每个柱塞泵都可作微量调整。 所有接触液体的部件均采用AISI 316L不锈钢和医用硅橡胶。 采用机械手加内塞和加外盖，大大增加了稳定性和可靠性。 7.7寸彩色触摸屏显示实时工作状态，支持多种语言。 可更换锁盖头，以适合不同的锁盖形式。 可选择加氮气保护和层流罩。
技术参数：
灌装量 | 0.5-3ml 3-10ml 10-20ml 20-50ml |
灌装头数量 | 2Sets |
生产能力 | 2400-3600 Bottles/Hour |
压缩空气 | 6Kg/cm2 0.15m3/min |
氮气 | 1Kg/cm2 0.1m3/min 0.25ц |
电源 | 3P 380V/220V 50-60Hz 1.0KW |
体积 | 2200×2400×1700mm |
重量 | 650Kg |
CHX-YG liquid filling capping machine
Introduction：
the machine is applicable to small doses of liquid, paste filling, capping, a lock cover. For example: the vials, nose drops, drop eyedrop bottle. AISI 316L stainless steel rotary plunger pump or high precision ceramic rotary-plunger pump driven by a servo motor, just on the touch-screen device, automatic precision correction, without any tools; each plunger pumps can be slightly adjusted. All wetted parts are made of stainless steel and AISI 316L medical silicone rubber. A mechanical hand to Ganese and the outer cover, greatly increases the stability and reliability of. 7.7 inch color touch screen display real-time work state, support for multiple languages. Replaceable lock head, the lock cover forms to suit different. Can choose to add nitrogen protection and laminar flow hood.
Technical parameter ：
Filling volume 0.5-3ml 3-10ml 10-20ml 20-50ml
The filling head number 2
Sets Production capacity of 2400-3600 Bottles/Hour
Compressed air 6Kg/cm2 0.15m3/min1Kg/cm2 0.1m3/min 0.25
nitrogen3P 380V/220V 50-60Hz 1.0KW
power supply Volume is 2200 ×2400 × 1700mm
Weight 650Kg
