价 格
订货量
￥15.5万
2 - 4
￥15.45万
价格为商家提供的参考价，请通过"获取最低报价"
获得您最满意的心理价位~
≥5
| 加工定制：是 | 功能：包装容器成型、 包装辅助、 集装 | 品牌：友联 |
| 包装材料：纸类 | 适用对象：护肤品类、 化妆品类 | 适用行业：食品、 医药、 日化 |
| 物料类型：固体 | 售后服务：保修一年（不含易损件） | 型号：CHZ-120C |
| 电压：220/380V | 功率：12Kw | 包装膜宽：3mm |
| 制成袋尺寸：160mm | 包装速度：70袋/分钟 | 重量：1350kg |
| 外形尺寸：3100㎜×1100㎜×1550㎜mm | 包装类型：瓶 | 自动化程度：全自动 |
| 规格：按客户要求 |

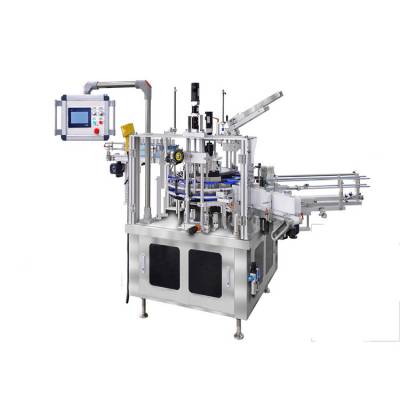

CHZ-120C多功能自动装盒机
产品特点：
本机用于将铝塑板块(包括已装铝箔袋药板）、塑料瓶（玻璃瓶）自动装入纸盒，包括说明书的折叠（1-4折）传送，纸盒成形与使用，打印批号，以及纸盒两端纸舌封装等全过程均属自动完成，并可与铝塑泡罩包装机，瓶装线，透明膜三维包装机等机械连动生产。 机械传动，变频调速，过载自动停机保护。 实现PLC程序控制，对药板、说明书的漏装自动检测，无药板自动等待。 设有成品计数与智能故障显示装置。技术参数：
装盒速度 | 30～75盒/分（boxs/min) | |
纸盒尺寸范围 | ≥65*35*14mm | |
≤125*78*55mm | ||
特殊机≤160*90*60mm | ||
未折说明书尺寸 | 90～190*100～260mm | |
说明书纸张要求 | 55～70g/㎡ | |
主电机功率 | 0.75kw | |
电源 | 三相四线380V50Hz | |
压缩空气 | 0.6～0.7MPa | |
耗气量 | 0.12～0.16 m3/min | |
外形包装尺寸 | 1300*1400*1600mm | |
整机尺寸 | 1200*1400*1550mm | |
重量 | 900Kg | |
CHZ-120C Medicine(Tablet/Capsule) Box Packaging Machine
Introduction ：
This machine is used to tade Alu/PVC medical plate or plastic bottle(vitreous bottle) to filling in paper box automatically. lt can perform automatically the whole proccess of folding and conveying of leaflet, paper box forming, batch number printing and box sealing. The machine can also be linked to work with Alu/PVC packing machine, bottle filling machine and transparent film three dimensional packing machine.Mechanical driving, variable frequency speed regulating, protection of automatic stop when the machine is over loaded;Control with PLC program, automatically check the miss filling of medical plate and instruction book. Automatic waiting when there is no medical plate; Equipped with the device for counting finished productsand intelligent fault display.Technical parameter ：
Running speed | 30～75(boxs/min) | ||
Size Range ofCardboard Box | ≥65X35X14mm | ||
≤125X78X55mm | |||
special machine≤160X90X60mm | |||
Size of unfolded leaflet | 90～190X100～260mm | ||
Quality of Operation Manual | 55～70g/㎡ | ||
Main Motor Power | 0.75kw | ||
Power | three phase four wire system 380V 50Hz | ||
Air-compress | 0.6～0.7MPa | ||
Air-consumption | 0.12～0.16 m3/min | ||
Overall Dimension | 1300X1400X1600mm | ||
Machine Dimension | 1200X1400X1550mm | ||
Weight | 900Kg | ||
Terms:
1) Packing: Export standard wooden case
2) Shipping Mark: To be advised
3) Total net weight: 850KGS/SET, Total gross weight: 900KGS/SET
4) Volume of machine: 3.0CBM(Around)/SET
5) Price validity: Within two month after quoting date
6) Country of origin: China
7) Shipment time: Within 30 days after receipt the advance payment
8) Port of loading: Any port,China, Port of destination: To be advised
