价 格
订货量
￥2.1万
1 - 4
￥2.05万
价格为商家提供的参考价，请通过"获取最低报价"
获得您最满意的心理价位~
≥5
| 加工定制：是 | 品牌：友联 | 型号：CH-1A |
| 包装类型：瓶 | 充填类型：称重式充填机 | 适用对象：护肤品类、 护发用品 |
| 适用行业：医药、 化工 | 售后服务：保修一年（不含易损件） | 功率：3Kw |
| 分装容量：1-500ml | 充填速度：15-60包/分 | 充填精度：±1% |
| 装箱容积：26L | 重量：280kg | 规格：按客户要求 |

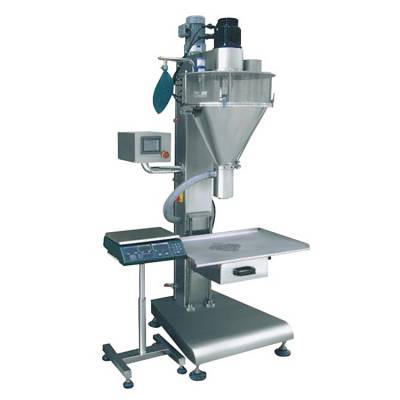

CH-1A小剂量粉末半自动充填机
产品特点:
该半自动充填包装机按照GMP标准而设计。该机自动完成计量、充填、重量超差报警等工作，适用包装粉粒状物料，如奶粉、饲料、米粉、白糖、咖啡、味精、固体饮料、葡萄糖、固体医疗等。
数码管显示各种工作状态，操作简便直观，工作方式一目了然
采用高速反应离合制动器推动螺旋，称重反馈比重跟踪，精度高，稳定性好。
整机结构、布局合理，更换包装品种、清理卫生极为方便。
工作参数配方可储存，备后使用，多可储存10种工作参数。
更换附件，能够适应超细粉粒到大颗粒等多种物料，多粉尘物料，附吸尘装置，净化环境。
技术参数:
电源 | 380/220V 50-60Hz |
功率 | 0.8kw |
灌装速度 | 15-60包/分 |
灌装精度 | ≤±1% |
称重范围 | 0.2-800（分辨率1克） |
灌装量 | 1-500克（变换螺旋附件） |
整机重量 | 150kg |
整机体积 | 650×750×1800mm |
料箱容机 | 18升（加大型26升） |
CH-1A Small Dose Semi-AutoFill Packing Machine
Introduction ：
Top end product, of the same machine type, is designed according to the National GMP Standards. This type can do measuring and filling work. it fits to the fluidic or low-fluidity materials, like milk powder, gourmet powder ,solid drink, white sugar, dextrose, coffee, fodder , solid medicine, granularity additive, dyestuff, and so on.
Flexible, movable. Infrared or pedal control laying-off. No limit to container style. Fit for the purpose of material style, net weight and specification needing to change regularly.
High-speed response on-off controller screw. Exact repeating precision, high speed, big torsional moment, long life to use.
Weight feedback to run after the specific weight, overcome the shortcoming of the net weight change with the material specific-weight.
LED display or in Chinese, simply visual superv***ry. Stepless adjust the net weight in working status and change it at any time, easy to control.
Save the parameter of technique data and magistral formula for later use. 10 sets of working parameter are saved at the most.
Fit for lots of material ranges from fine-powder to coarse-granule, if change the screw attachment. Dust- collector set on dust material.
Technical parameter ：
Package Weight: 1-500g(The screw attachment is can be changed.)
Weighing Range: 0.2-800（with a resolution of 1g）
Packaging Accuracy: ≤1%
Packaging Rate: 15-60 bags/min
Power Supply: 380/220V 50-60Hz
Total Power: 800W
Total Weight: 150 kg
Overall Dimensions: 650×750×1800MM
Hopper Volume: 18L（26 liter for oversized hopper）
