| 加工定制：是 | 品牌：友联 | 型号：CH-2A |
| 包装类型：罐 | 充填类型：称重式充填机 | 适用对象：护发用品、 化妆品类 |
| 适用行业：食品、 化工 | 售后服务：保修一年（不含易损件） | 功率：3Kw |
| 分装容量：10-500ml | 充填速度：20-60 | 充填精度：±1% |
| 装箱容积：20L | 重量：280kg | 规格：按客户要求 |

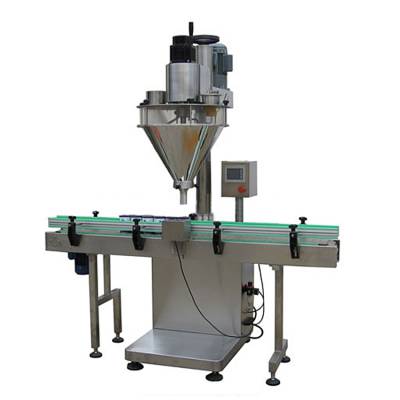

CH-2A全自动粉剂末罐装充填机
产品特点：
1CH-2A 自动给罐螺旋充填机能自动完成瓶子自动定位、充填及计量等功能，可与理瓶机、旋盖机、贴标机等组成灌装流水线。该设备广泛适用于奶粉、调味品、爽身粉、农药等。
2 中/英文触摸屏人机界面，PLC控制系统，伺服电机驱动螺旋。
3 全不锈钢结构；开门式料箱，无需工具即可方便清洗
4 伺服电机驱动螺杆
5 工作参数配方可储存，备后使用，多存储10个配方
6 采用螺旋给罐并定位，定位准确稳定。
7 更换充填螺旋附件，能够适应超细粉到小颗粒等多种物料
技术参数：
型号 | CH-2A | CH-2B |
充填重量 | 10-500g | 50-5000g |
计量方式 | 螺旋旋转定位量Auger filling | |
充填精度 | ≦±0.3-1％（不同的物料特性或充填重量，此参数有可能变化） | |
充填速度 | 20-60罐/分钟 | |
电源/功率 | 3-Phase 380V 50-60Hz/1Kw | 3-Phase 380V 50-60Hz/1.8Kw |
料箱容积 | 20L | 50L |
整机重量 | 200kg | 320kg |
整机体积 | 2440×680×1770mm | 2500×850×2050mm |
容器尺寸 | 圆柱型容器直径：20-100MM 高：50-200MM
| 圆柱型容器直径：20-100MM 高：50-350MM
|
CH-2A Fully Automatic Canned Filling Machine
Introduction ：
1 CH-2A Automatic can-feeder was designed for automatic container orienting, filling and weighing, which can constitute a canned product line combined with can unscrambler, cover pusher and label sticker, it is suitable for powdery materials, such as packing milk powder, monosodium glutamate, solid medicament, etc
2 Chinese & English touch screen and HML, PLC control system. Auger is driven by servo motor
3 Made of stainless steel, the door of hopper can be side opened, easy to clean the machine
4 Filling system is driven by servo-motor, high weighing precision
5 Max.100 recipes can be saved for later using
6 Auger positioning improves the accuracy of can orienting
7 Changeable auger accessories, suitable for packing materials from powdery to petty grainy
Technical parameter ：
Model | CH-2A | CH-2B |
Filling Weight | 10-500g | 50-5000g |
Dosing way | Auger filling | |
Packaging Accuracy | ≦±0.3-1％(According to filling weight and product specs) | |
Packaging Speed | 20-60cans/min | |
Power Supply/Total Power | 3-Phase 380V 50-60Hz/1Kw | 3-Phase 380V 50-60Hz/1.8Kw |
Hopper Volume | 20L | 50L |
Total Weight | 200kg | 320kg |
Overall Dimesions | 2440×680×1770mm | 2500×850×2050mm |
Container Size |
Cylindrical container with a diameter 20-100mm and a height of 50-200 mm | Cylindrical container with a diameter 20-100mm and a height of 50-350 mm |
